SEWER

Water receiver

EZ PVC waste water receiver

Specification

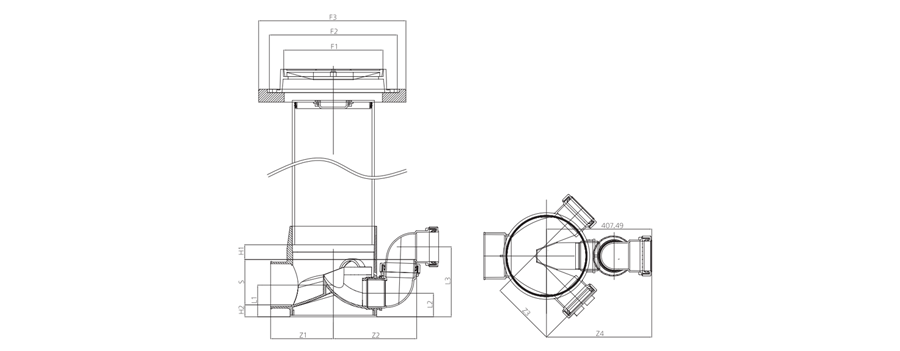

DN Inflow part Outflow part Z1 Z2 Z3 Z4 Z5 L L1 L2 L3 L4 L5 L6
300 100 VG150 242.5 255.6 265 495 570 351 123 91.6 273.5 239.1 190 402

※ The EZ PVC waste water receiver A (Inflow HI-VG 100, Outflow PVC DC150)

DN Inflow part Outflow part Z
300 100 HI-VG150 371.7

※ The EZ PVC waste water receiver B (Inflow HI-VG 100, Outflow PVC DC150)

DN Inflow part Outflow part Z
300 100 HI-VG150 242.69
