SEWER

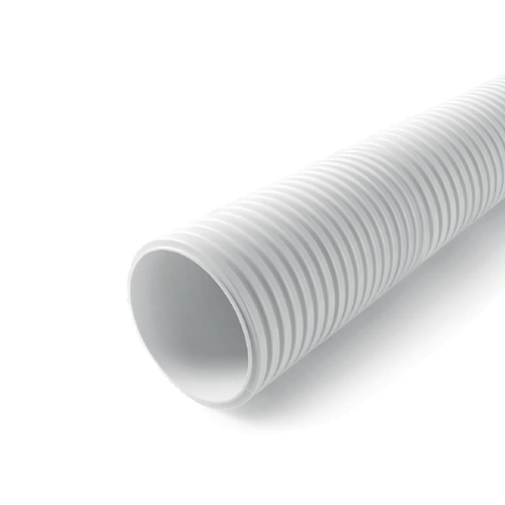

Double wall pipesDouble wall pipe (DC)

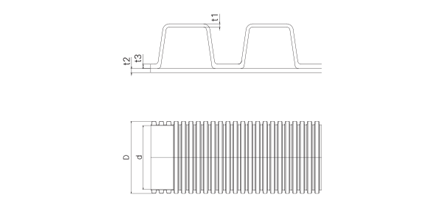

Specification
| DN | Outer diameter (D) | Min. Thickness (t) | Typ. Inner diameter (d) |
Normal length | |||
|---|---|---|---|---|---|---|---|
| Typ. | Tolerance | Outer wall (t1) | Inner wall (t2) | 골 (t3) | |||
| 150 | 181 | ±0.90 | 0.70 | 1.00 | 1.80 | 155 | 6,000 |
| 200 | 239 | ±0.90 | 0.90 | 1.10 | 2.20 | 210 | 6,000 |
| 250 | 296 | ±1.20 | 1.00 | 1.50 | 2.80 | 257 | 6,000 |
| 300 | 356 | ±1.35 | 1.30 | 1.70 | 3.40 | 305 | 6,000 |
| 400 | 460 | ±1.80 | 1.40 | 2.30 | 3.60 | 397 | 6,000 |
