SEWER
Sewer pipes

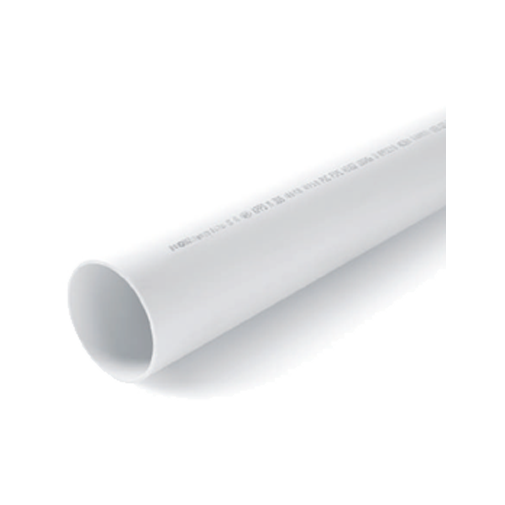

Impact-resistant sewer supply pipe (HIVG1, HIVG2)
HIVG2

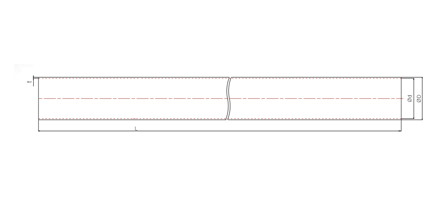

| DN |
Outer diameter (ØD) |
Thickness (t) |
Inner diameter (ØD) |
Normal length (L) |
| Diameter |
Indication |
Typ. |
Tolerance |
min. |
Tolerance |
| 100 |
HIVG2 100 |
114 |
±0.4 |
3.1 |
+0.8 |
107 |
6,000 |
| 125 |
HIVG2 125 |
140 |
±0.5 |
4.1 |
+0.8 |
131 |
6,000 |
| 150 |
HIVG2 150 |
165 |
±0.5 |
5.1 |
+0.8 |
154 |
6,000 |
| 200 |
HIVG2 200 |
216 |
±0.7 |
6.5 |
+1.0 |
202 |
6,000 |
| 250 |
HIVG2 250 |
267 |
±0.9 |
7.8 |
+1.2 |
250 |
6,000 |
| 300 |
HIVG2 300 |
318 |
±1.0 |
9.2 |
+1.4 |
298 |
6,000 |
HIVG1
| DN |
Outer diameter (ØD) |
Thickness (t) |
Inner diameter (ØD) |
Normal length (L) |
| Diameter |
Indication |
Typ. |
Tolerance |
min. |
Tolerance |
| 100 |
HIVG1 100 |
114 |
±0.4 |
6.6 |
+1.0 |
100 |
6,000 |
| 125 |
HIVG1 125 |
140 |
±0.5 |
7.0 |
+1.0 |
125 |
6,000 |
| 150 |
HIVG1 150 |
165 |
±0.5 |
8.9 |
+1.4 |
146 |
6,000 |
| 200 |
HIVG1 200 |
216 |
±0.7 |
10.3 |
+1.4 |
194 |
6,000 |
| 250 |
HIVG1 250 |
267 |
±0.9 |
12.7 |
+1.8 |
240 |
6,000 |
| 300 |
HIVG1 300 |
318 |
±1.0 |
15.1 |
+2.2 |
286 |
6,000 |
