SEWER
Sewer pipes

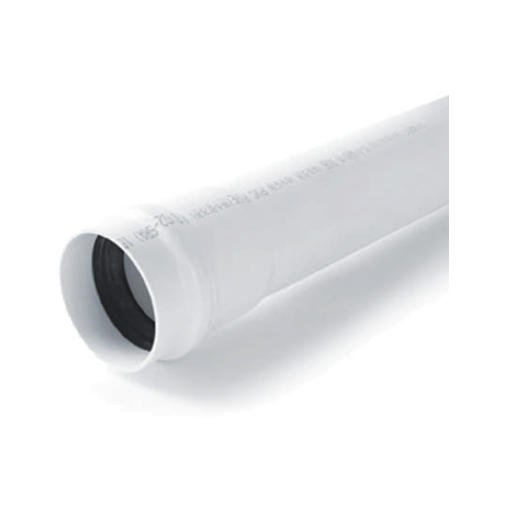

Impact-resistant sewer supply pipe (HIVG1-SRA type, HIVG2-SRA type)
HIVG2-SRA

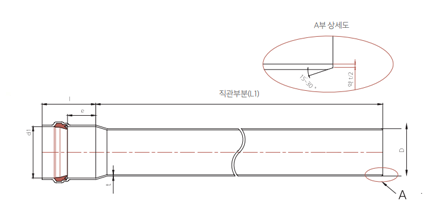

| DN |
Outer diameter(D) |
Insert part inner diameter(di) |
Thickness (t) |
Expanded part (l) |
Inser length (e) |
Inner diameter |
Normal length (L1) |
| Typ. |
Tolerance |
min. |
min. |
Tolerance |
max. |
min. |
| 100 |
114 |
±0.06 |
114.5 |
3.1 |
+0.8 |
145(120) |
42(63.13) |
107 |
6.000 |
| 150 |
114 |
±1.00 |
165.7 |
5.1 |
+0.8 |
165(145) |
47(72) |
154 |
6.000 |
| 200 |
216 |
±1.30 |
216.9 |
6.5 |
+1.0 |
185(165) |
52(101) |
202 |
6.000 |
| 250 |
267 |
±1.60 |
268.1 |
7.8 |
+1.2 |
205(190) |
57(106.5) |
250 |
6.000 |
| 300 |
318 |
±1.90 |
319.5 |
9.2 |
+1.4 |
225(220) |
62(118) |
298 |
6.000 |
HIVG1-SRA
| DN |
Outer diameter (D) |
Insert part inner diameter (di) |
Thickness (t) |
Expanded part (l) |
Insert length (e) |
Inner diameter |
Normal length (L1) |
| Typ. |
Tolerance |
min. |
min. |
Tolerance |
max. |
min. |
| 100 |
114 |
±0.06 |
114.5 |
6.6 |
+1.0 |
145(120) |
42(63.13) |
100 |
6.000 |
| 150 |
114 |
±1.00 |
165.7 |
8.9 |
+1.4 |
165(145) |
47(72) |
146 |
6.000 |
| 200 |
216 |
±1.30 |
216.9 |
10.3 |
+1.4 |
185(165) |
52(101) |
194 |
6.000 |
| 250 |
267 |
±1.60 |
268.1 |
12.7 |
+1.8 |
205(190) |
57(106.5) |
240 |
6.000 |
| 300 |
318 |
±1.90 |
319.5 |
15.1 |
+2.2 |
225(220) |
62(118) |
286 |
6.000 |
