SEWER

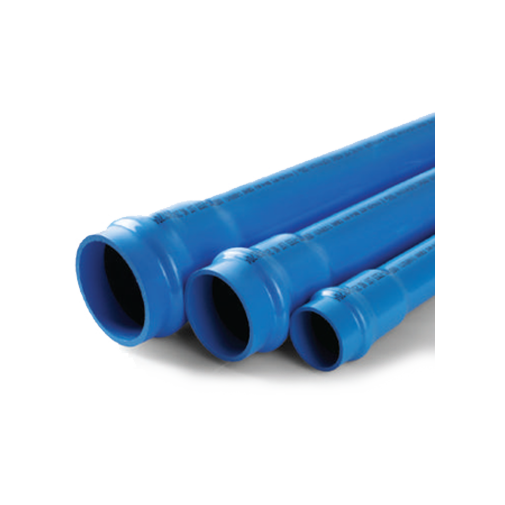

Water supply pipesImpact-resistant water supply pipe (HIVP-SRA TYPE)

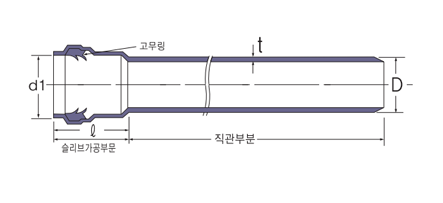

Specification
| PN | DN | Outer diameter (OD) | Thickness | |||
|---|---|---|---|---|---|---|
| Typ. | Tolerance (max, min.) |
Tolerance (OD) |
Minimum | Tolerance (t) | ||
| (PN16) | 50 | 60 | ±0.50 | ±0.20 | 4.4 | +0.7 |
| (PN16) | 65 | 76 | ±0.50 | ±0.20 | 5.6 | +0.8 |
| (PN16) | 75 | 89 | ±0.50 | ±0.20 | 6.5 | +0.9 |
| (PN16) | 100 | 114 | ±0.65 | ±0.20 | 6.7 | +0.9 |
| (PN16) | 125 | 140 | ±0.80 | ±0.40 | 8.2 | +1.1 |
| (PN16) | 150 | 165 | ±1.00 | ±0.50 | 9.7 | +1.2 |
| (PN16) | 200 | 216 | ±1.30 | ±0.70 | 12.7 | +1.5 |
| (PN12.5) | 10.3 | +1.3 | ||||
| (PN12.5) | 250 | 267 | ±1.60 | ±0.90 | 12.7 | +1.5 |
| (PN12.5) | 300 | 318 | ±1.90 | ±1.00 | 15.1 | +1.78 |
