SEWER

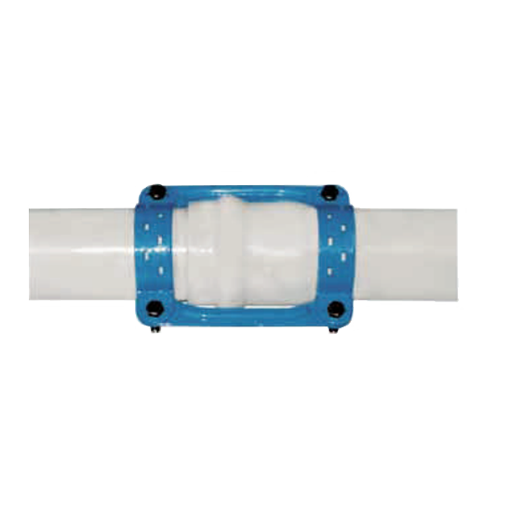

Water supply fittingsAnti-separation clamp
Specification
Composition
| NO | Part | Quantity | Material | Note |
|---|---|---|---|---|
| 1 | Body | 2 | 88400.GCD450(350.400A) | Epoxy powder painting |
| 2 | Bolt, Nut, Washer | 4SET | SS400 | - |
Standard

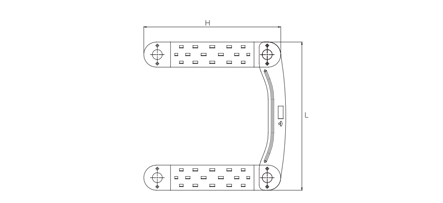

| DN | L | H | Bolt | Quantity |
|---|---|---|---|---|
| 50A | 248 | 138 | M12 | 4 |
| 65A | 262 | 164 | M12 | 4 |
| 75A | 262 | 175 | M12 | 4 |
| 100A | 262 | 204 | M12 | 4 |
| 125A | 295 | 247 | M18 | 4 |
| 150A | 295 | 273 | M18 | 4 |
| 200A | 335 | 330 | M12 | 8 |
| 250A | 440 | 437 | M18 | 8 |
| 300A | 495 | 488 | M18 | 8 |
| 350A | 570 | 515 | M18 | 8 |
| 400A | 570 | 561 | M18 | 8 |
