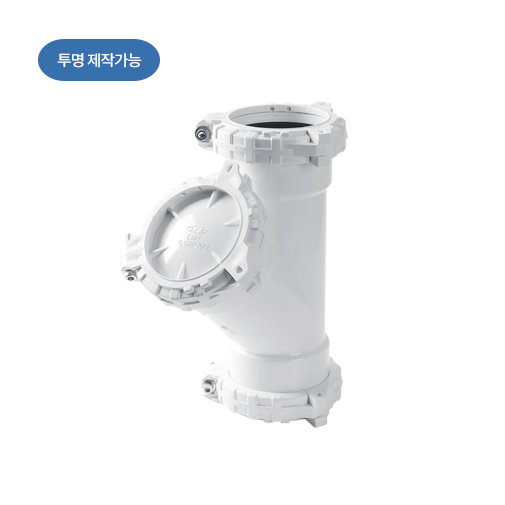

EDR fittingsCY-II type

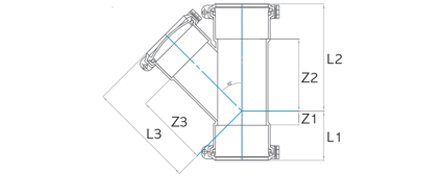

Specification
| DN | Z1 | Z2 | Z3 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|
| 50 | 18 | 123 | 95 | 63 | 168 | 140 |
| 75 | 25 | 151 | 130 | 89 | 215 | 194 |
| 100 | 28 | 178 | 148 | 103 | 253 | 223 |
| 125 | 38 | 192 | 195 | 131 | 285 | 288 |
| 150 | 44 | 220 | 225 | 154 | 330 | 335 |
| 200 | 53 | 278 | 290 | 193 | 418 | 430 |
| 250 | 70 | 350 | 350 | 230 | 510 | 510 |
| 75X50 | 5 | 124 | 115 | 69 | 188 | 160 |
| 100X50 | -7 | 130 | 133 | 68 | 205 | 178 |
| 100X75 | 12 | 160 | 137 | 87 | 235 | 201 |
| 125X50 | -15 | 127 | 155 | 78 | 220 | 200 |
| 125X75 | - | 155 | 160 | 93 | 248 | 224 |
| 125X100 | 18 | 198 | 180 | 111 | 273 | 254 |
| 150X50 | -30 | 138 | 170 | 80 | 248 | 215 |
| 150X75 | -10 | 165 | 180 | 100 | 275 | 244 |
| 150X100 | 5 | 180 | 195 | 115 | 290 | 270 |
| 150X125 | 27 | 203 | 210 | 137 | 313 | 303 |
| 200X100 | -15 | 210 | 230 | 125 | 350 | 304 |
| 200X125 | - | 230 | 245 | 140 | 370 | 338 |
| 200X150 | 18 | 250 | 260 | 158 | 390 | 370 |
| 250X100 | -41 | 236 | 270 | 119 | 396 | 345 |
| 250X125 | -26 | 260 | 280 | 134 | 420 | 373 |
| 250X150 | - | 275 | 295 | 160 | 435 | 405 |
| 250X200 | 35 | 310 | 320 | 195 | 470 | 460 |
