BUILDING

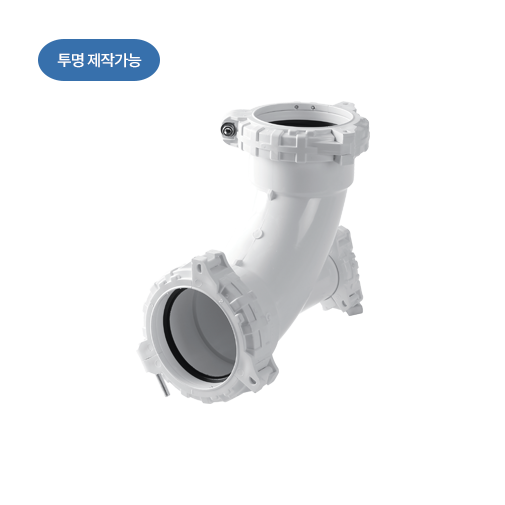

EDR fittingsSextia – Short Elbow

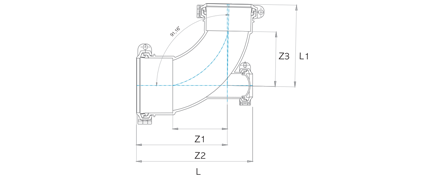

Specification
| DN | Z1 | Z2 | Z3 | L | L1 |
|---|---|---|---|---|---|
| 100 | 132 | 207 | 132 | 278 | 207 |
| 100X75 | 130 | 205 | 130 | 263 | 194 |
| 125X100 | 140 | 233 | 140 | 304 | 215 |
