BUILDING

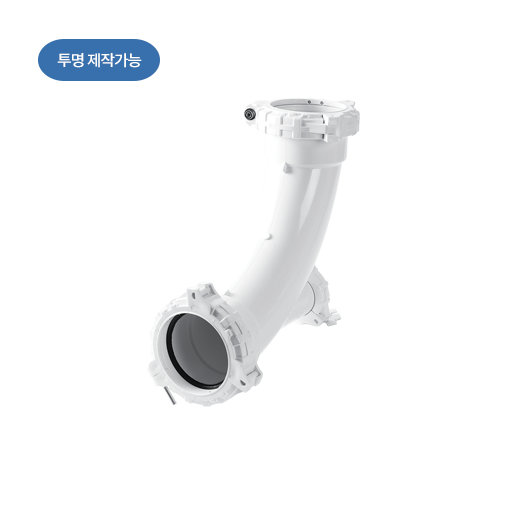

EDR fittingsSextia – Long Elbow

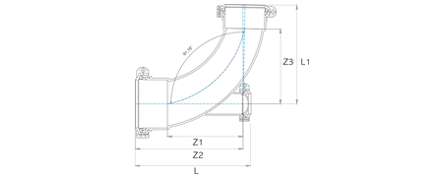

Specification
| DN | Z1 | Z2 | Z3 | L | L1 |
|---|---|---|---|---|---|
| 75 | 220 | 284 | 220 | 293 | 284 |
| 100 | 220 | 295 | 220 | 313 | 295 |
| 100X75 | 220 | 295 | 220 | 313 | 284 |
| 125X100 | 220 | 313 | 220 | 340 | 295 |
| 150X100 | 220 | 330 | 220 | 363 | 295 |
