BUILDING

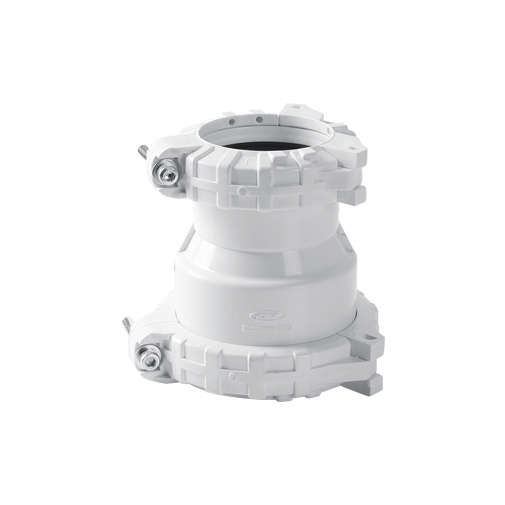

EDR fittingsReducer (IN)

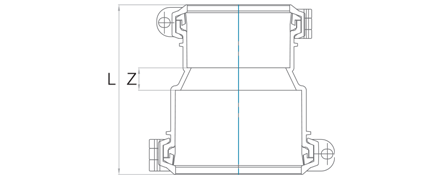

Specification
| DN | Z | L |
|---|---|---|
| 75X50 | 25 | 135 |
| 100X50 | 30 | 150 |
| 100X75 | 25 | 164 |
| 125X100 | 25 | 193 |
| 150X100 | 35 | 220 |
| 150X125 | 25 | 229 |
| 200X150 | 45 | 296 |
| 250X200 | 45 | 346 |
BUILDING
EDR fittings | DN | Z | L |
|---|---|---|
| 75X50 | 25 | 135 |
| 100X50 | 30 | 150 |
| 100X75 | 25 | 164 |
| 125X100 | 25 | 193 |
| 150X100 | 35 | 220 |
| 150X125 | 25 | 229 |
| 200X150 | 45 | 296 |
| 250X200 | 45 | 346 |
