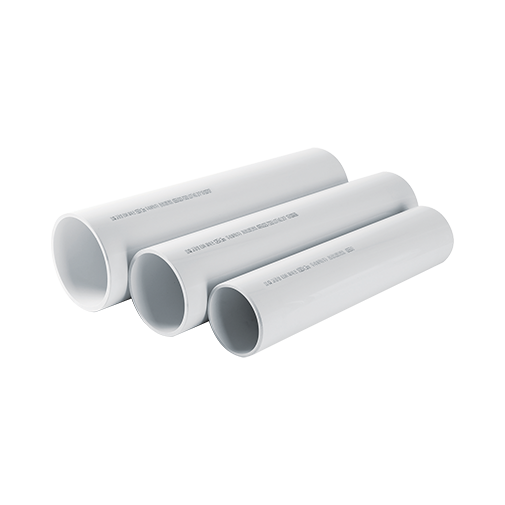

EDR pipesEDR pipe
Specification

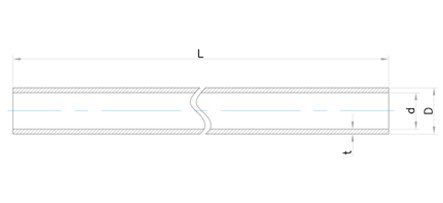

| DN | Outer diameter(D) | Typ. thickness(t) | Inner diameter(d) | Typ. Length(L) |
|---|---|---|---|---|
| 50 | 60±0.2 | 4.0 ↑ | 52.0 | 3m |
| 75 | 89±0.3 | 5.0 ↑ | 79.4 | 3m |
| 100 | 114±0.4 | 5.5 ↑ | 103.0 | 3m |
| 125 | 140±0.5 | 6.5 ↑ | 127.0 | 3m |
| 150 | 165±0.5 | 7.0 ↑ | 151.0 | 3m |
| 200 | 216±0.7 | 7.5 ↑ | 201.0 | 3m |
| 250 | 267±0.9 | 9.0 ↑ | 249.0 | 3m |
