BUILDING

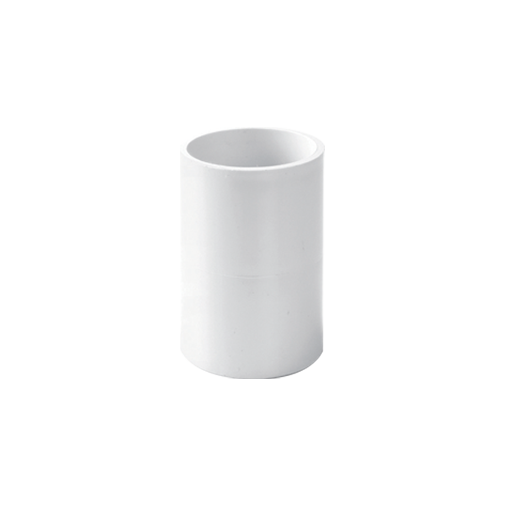

Pressure fittingsSocket

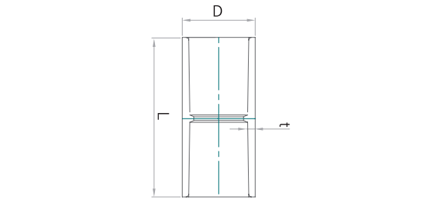

Specification
| DN | D | t | L |
|---|---|---|---|
| 16 | 29 | 3.5 | 67 |
| 20 | 33 | 3.5 | 77 |
| 25 | 40 | 4.0 | 87 |
| 30 | 46 | 4.0 | 95 |
| 35 | 51 | 4.0 | 95 |
| 40 | 57 | 4.5 | 117 |
| 50 | 70 | 5.0 | 133 |
| 65 | 88.4 | 5.5 | 146 |
| 75 | 103.2 | 6.0 | 155 |
| 100 | 129 | 7.5 | 200 |
| 125 | 158 | 9.0 | 242 |
| 150 | 186.4 | 10.0 | 300 |
| ◆ 200 | 239.4 | 11.0 | 317 |
