BUILDING

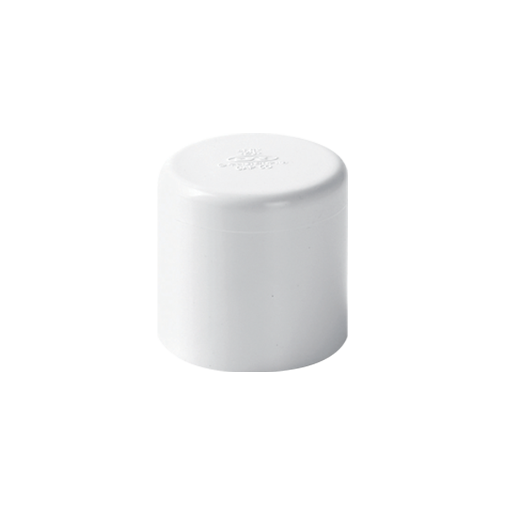

Pressure fittingsCap

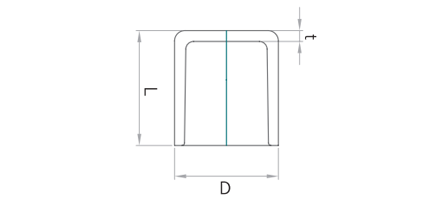

Specification
| DN | D | t | L |
|---|---|---|---|
| 16 | 29 | 3.5 | 33.5 |
| 20 | 33 | 3.5 | 38.5 |
| 25 | 40 | 4.0 | 44.0 |
| 30 | 46 | 4.0 | 48.0 |
| ◆ 35 | 51 | 4.5 | 54.5 |
| 40 | 57 | 4.5 | 59.5 |
| 50 | 70 | 5.0 | 68.0 |
| 75 | 103.2 | 6.7 | 105.0 |
| 100 | 129 | 7.5 | 138.0 |
