Pressure fittings

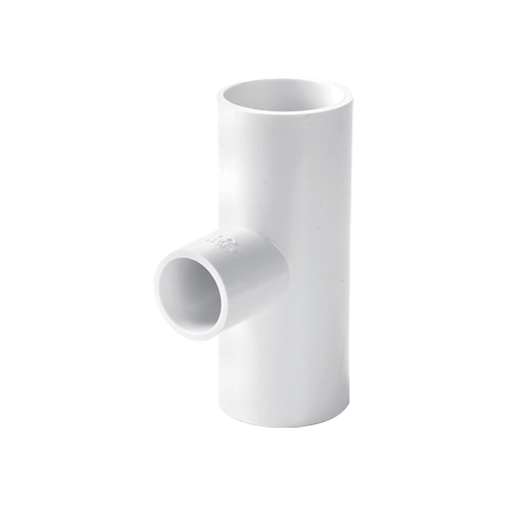

Reducing Tee

Specification

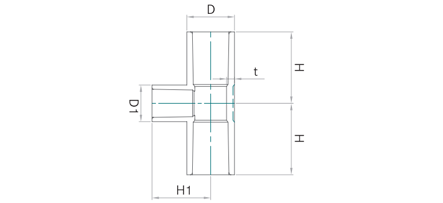

DND t H D1 H1
20X16 33 3.5 48 29 45
25X16 40 4.0 53 29 48
25X20 40 4.0 55 33 53
30X16 46 4.0 57 29 51
30X20 46 4.0 59 33 56
30X25 46 4.0 62 40 61
40X16 57 4.5 68 29 57
40X20 57 4.5 70 33 62
40X25 57 4.5 73 40 67
40X30 57 4.5 76 46 71
50X16 70 5.0 76 29 63
50X20 70 5.0 78 33 68
50X25 70 5.0 81 40 73
50X30 70 5.0 84 46 77
50X40 70 5.0 90 57 88
