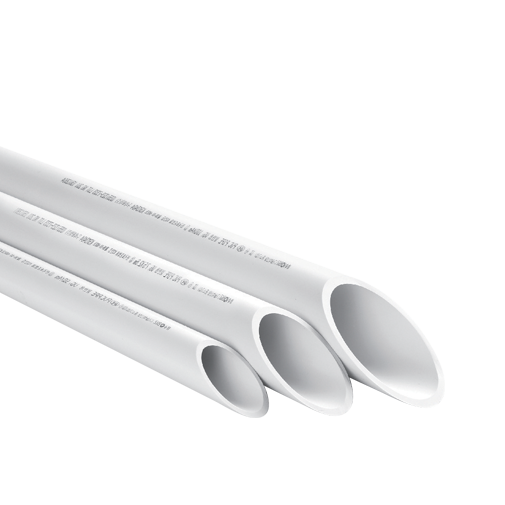

Pressure pipesPressure pipe (VP)
Specification
| PN | DN | Outer diameter (OD) | Thickness | |||
|---|---|---|---|---|---|---|
| Typ. | Max. min. | Average | Miniumum | Tolerance (t) | ||
| OD | OD | |||||
| Tolerance (D) | Tolerance (D) | |||||
| (PN 20) | 16 | 22 | ±0.20 | ±0.20 | 2.0 | +0.4 |
| (PN 20) | 20 | 26 | ±0.25 | ±0.20 | 2.4 | +0.5 |
| (PN 20) | 25 | 32 | ±0.30 | ±0.20 | 2.9 | +0.5 |
| (PN 20) | 30 | 38 | ±0.35 | ±0.20 | 3.5 | +0.6 |
| (PN 16) | 2.8 | +0.5 | ||||
| (PN 16) | 35 | 42 | ±0.35 | ±0.20 | 3.1 | +0.6 |
| (PN 16) | 40 | 48 | ±0.40 | ±0.20 | 3.5 | +0.6 |
| (PN 16) | 50 | 60 | ±0.50 | ±0.20 | 4.4 | +0.7 |
| (PN 16) | 65 | 76 | ±0.50 | ±0.20 | 5.6 | +0.8 |
| (PN 16) | 75 | 89 | ±0.50 | ±0.20 | 6.5 | +0.9 |
| (PN 16) | 100 | 114 | ±0.65 | ±0.20 | 6.7 | +0.9 |
| (PN 16) | 125 | 140 | ±0.80 | ±0.40 | 8.2 | +1.1 |
| (PN 16) | 150 | 165 | ±1.00 | ±0.50 | 9.7 | +1.2 |
| (PN 16) | 200 | 216 | ±1.30 | ±0.70 | 12.7 | +1.5 |
| (PN 12.5) | 10.3 | +1.3 | ||||
| (PN 12.5) | 250 | 267 | ±1.60 | ±0.90 | 12.7 | +1.5 |
| (PN 12.5) | 300 | 318 | ±1.90 | ±1.00 | 15.1 | +1.8 |
