BUILDING

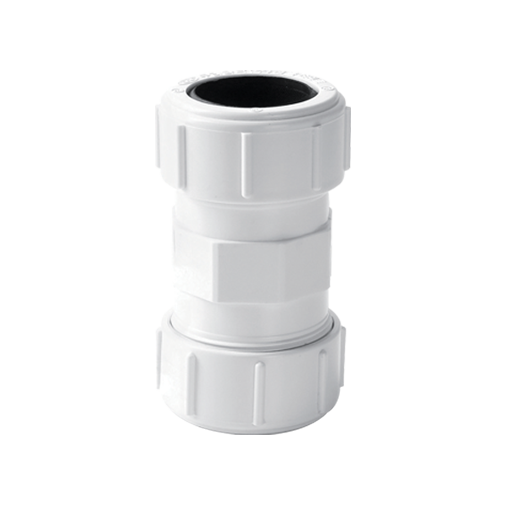

Pressure fittingsSimple joint

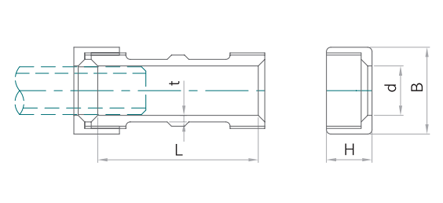

Specification
| DN | L | t | H | d | B |
|---|---|---|---|---|---|
| 16 | 74 | 3.5 | 21 | 22.8 | 40 |
| 20 | 78 | 3.5 | 21 | 26.8 | 43 |
| 25 | 88 | 4.0 | 21 | 33.0 | 50 |
| 30 | 97 | 4.0 | 25 | 39.0 | 58 |
| 40 | 106 | 4.5 | 26 | 49.2 | 70 |
| 50 | 116 | 5.0 | 26 | 61.5 | 84 |
