BUILDING

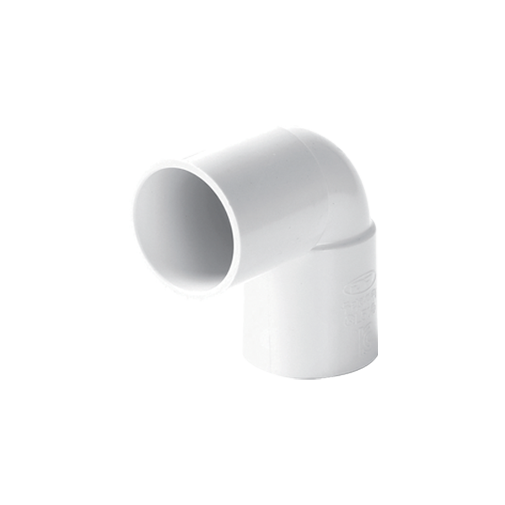

Pressure fittings90 Elbow (DL)

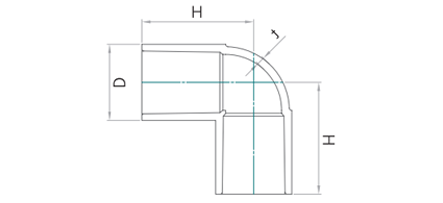

Specification
| DN | D | t | H |
|---|---|---|---|
| 16 | 29 | 3.5 | 43 |
| 20 | 33 | 3.5 | 50 |
| 25 | 40 | 4.0 | 58 |
| 30 | 46 | 4.0 | 65 |
| 35 | 51 | 4.0 | 71 |
| 40 | 57 | 4.5 | 82 |
| 50 | 70 | 5.0 | 96 |
| 65 | 88.4 | 5.8 | 112 |
| 75 | 103.2 | 6.7 | 127 |
| 100 | 129 | 7.5 | 158 |
| ◆ 125 | 158 | 8.4 | 197 |
| ◆ 150 | 186.4 | 9.9 | 233 |
| ◆ 200 | 239.4 | 10.5 | 280 |
