NC1 fittingsInsert part

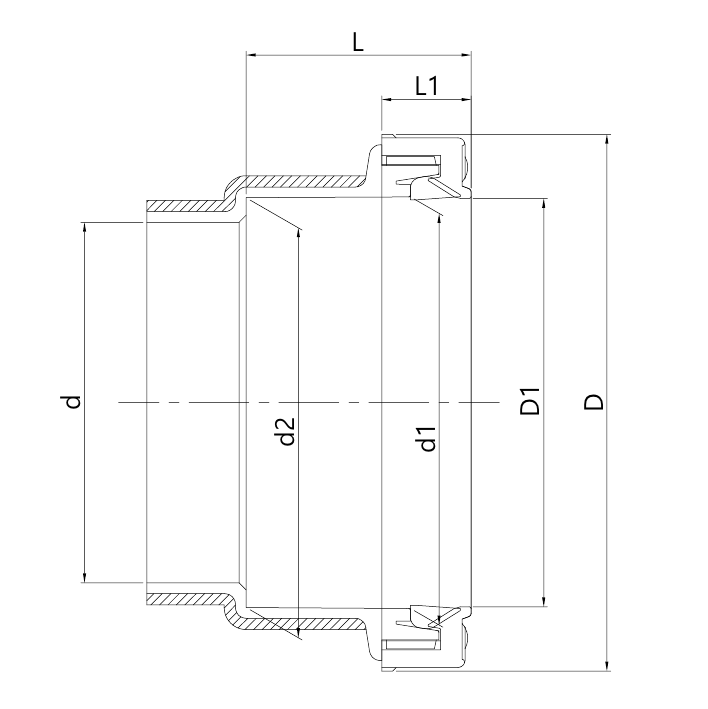

Specification
| DN | d(min.) | d1 | d2 | d1,d2(tolerance) | D(reference) | D1(min.) | L(reference) | L1(reference) |
|---|---|---|---|---|---|---|---|---|
| 35 | 35 | 43.1 | 42.6 | ±0.35 | 71 | 42 | 28.5 | 18 |
| 40 | 40.5 | 49.1 | 48.6 | ±0.35 | 76.5 | 48.5 | 33.5 | 18 |
| 50 | 51 | 61.1 | 60.6 | ±0.35 | 89 | 60 | 35.5 | 19.5 |
| 75 | 78 | 90.2 | 89.7 | ±0.5 | 121.6 | 89.4 | 50.5 | 22 |
| 100 | 100 | 115.3 | 114.8 | ±0.5 | 151.4 | 114.4 | 63 | 25 |
