BUILDING

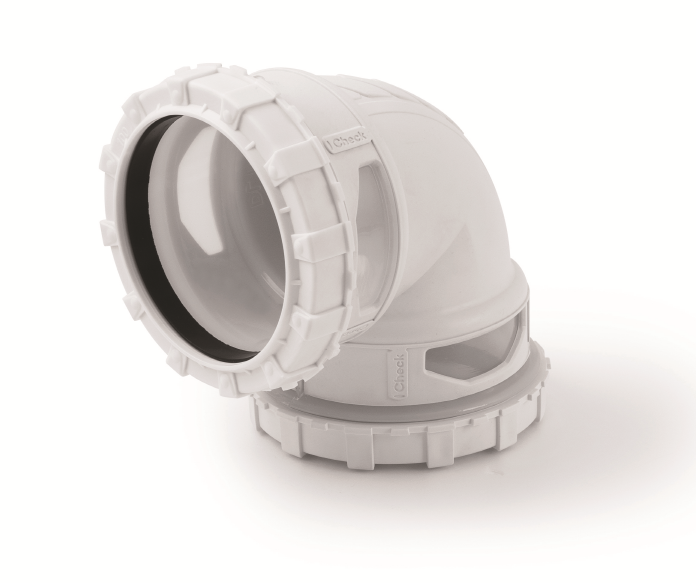

NC1 fittingsDL
Specification
| DN | Z | L1 | L |
|---|---|---|---|
| 35 | 27 | 91.5 | 55.5 |
| 40 | 28 | 100 | 61.5 |
| 50 | 34 | 114.5 | 69.5 |
| 75 | 45 | 157 | 95.5 |
| 100 | 58 | 198 | 121 |
