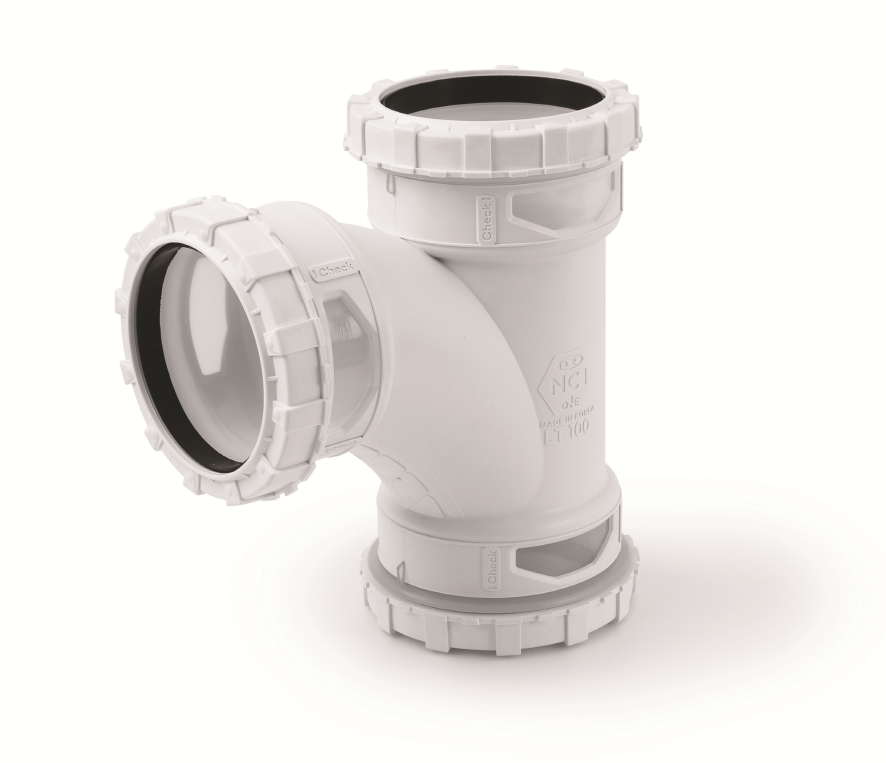

NC1 fittings

LT

Specification

DN Z1 Z2 Z3 L1 L2 L3 L4
50 61 21 61 141.5 96.5 56.5 96.5
50X35 38 17 49.5 123 73.5 52.5 78
50X40
 49 18 55 133.5 84.5 53.5 88.5
75 101 40 96 208 151.5 90.5 146.5
75X50 66 26 79 176 116.5 76.5 114.5
100 123 38 123 263 186 101 186
100X50 61 27 88 200 124 90 123.5
100X75 98 33 108 235 161 96 158.5
