BUILDING

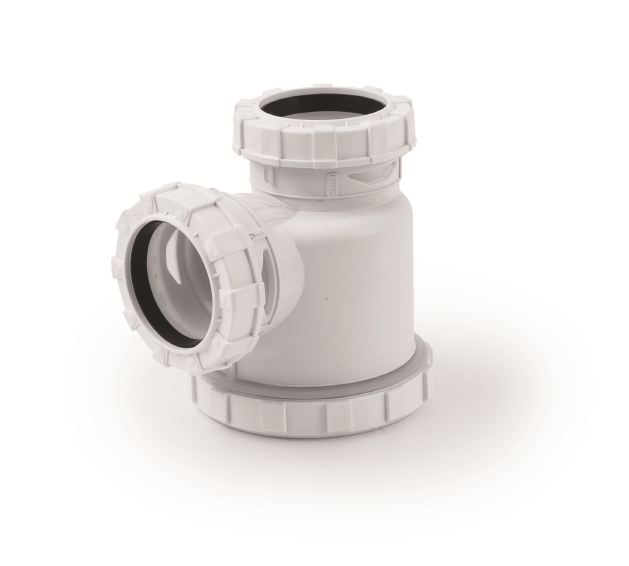

NC1 fittingsP-trap A type
Specification
| DN | L1 | L2 | L3 | L4 | L5 | L6 | L7 |
|---|---|---|---|---|---|---|---|
| 40X75 | 71.5 | 146 | 132 | 85 | 10 | 12 | 60 |
| 50X75 | 79 | 150 | 144 | 89 | 13 | 12 | 67.5 |
