BUILDING

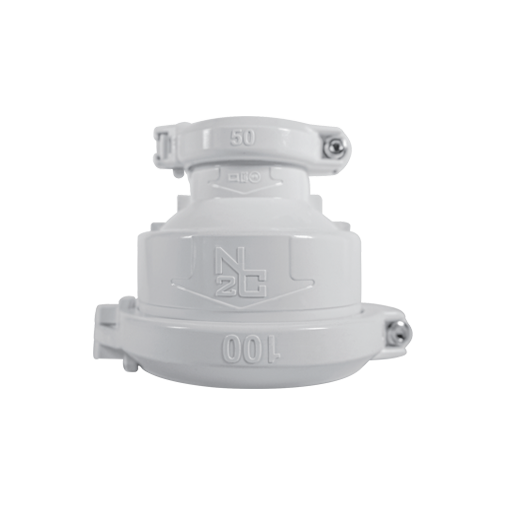

NC2 fittingsIN

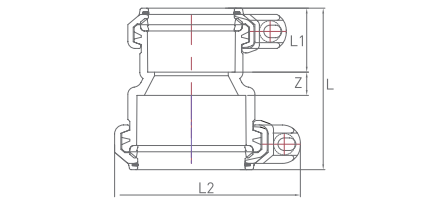

Specification
| DN | Z | L | L1 | L2 |
|---|---|---|---|---|
| 50X35 | 13 | 90 | 36 | 104 |
| 50X40 | 13 | 90 | 36 | 104 |
| 75X50 | 18 | 114 | 42 | 137 |
| 100X50 | 25 | 131 | 42 | 166 |
| 100X75 | 20 | 138 | 54 | 166 |
BUILDING
NC2 fittings | DN | Z | L | L1 | L2 |
|---|---|---|---|---|
| 50X35 | 13 | 90 | 36 | 104 |
| 50X40 | 13 | 90 | 36 | 104 |
| 75X50 | 18 | 114 | 42 | 137 |
| 100X50 | 25 | 131 | 42 | 166 |
| 100X75 | 20 | 138 | 54 | 166 |
