NC2 fittingsInsert part

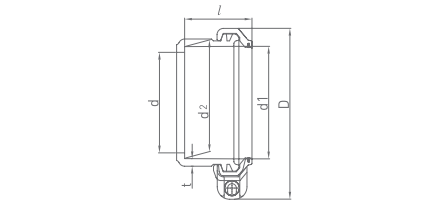

Specification
| DN | d(reference) | d1 | d2(min.) | D(reference) | t(min.) | l |
|---|---|---|---|---|---|---|
| 35 | 36.4 | 43.2±0.5 | 42.0 | 81 | 3.5 | 32.5 |
| 40 | 41.0 | 49.2±0.5 | 48.0 | 89 | 4.0 | 32.5 |
| 50 | 52.6 | 61.2±0.6 | 60.0 | 104 | 4.5 | 38.5 |
| 75 | 80.6 | 90.2±1.0 | 89.0 | 137 | 5.5 | 54 |
| 100 | 104.6 | 115.4±1.0 | 114 | 166 | 6.0 | 64 |
