BUILDING

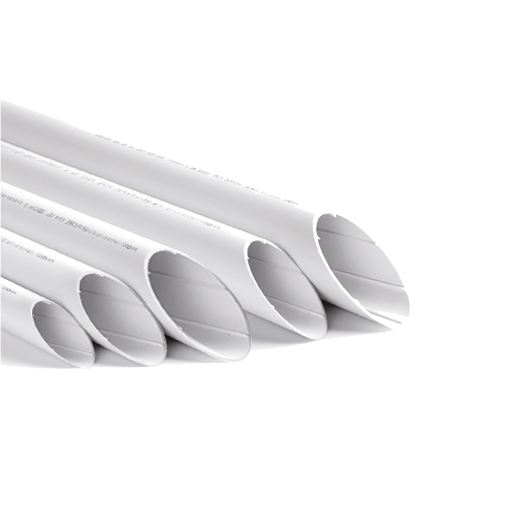

General pipes [ ]Gnernal spiral pipe (VN)
Specification

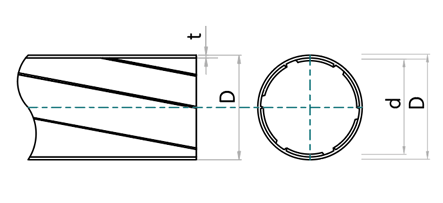

| DN | Outer diameter(D) | Inner Diameter(d) | Thickness(t) |
|---|---|---|---|
| Typ. | Reference | Typ. | |
| 75 | 89 | 83.5 | 2.7 |
| 100 | 114 | 107.8 | 3.1 |
