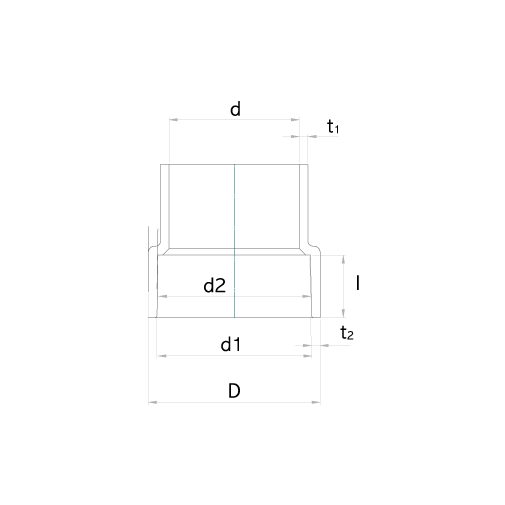

General fittings [ DTS fittings ]Insert part
Specification
| DN | d1 | d2 | ℓ | t | |||
|---|---|---|---|---|---|---|---|
| Typ. | Tolerance | Typ. | Tolerance | Typ. | Tolerance | min. | |
| 30 | 38.25 | ±0.25 | 37.85 | ±0.25 | 18 | ±1 | 2.7 |
| 35 | 42.25 | ±0.25 | 41.85 | ±0.25 | 20 | ±1 | 2.7 |
| 40 | 48.30 | ±0.30 | 47.80 | ±0.30 | 22 | ±1 | 2.7 |
| 50 | 60.35 | ±0.30 | 59.75 | ±0.30 | 25 | ±1 | 3.1 |
| 65 | 76.40 | ±0.25 | 37.85 | ±0.30 | 35 | ±1 | 3.1 |
| 75 | 89.45 | ±0.30 | 88.65 | ±0.30 | 40 | ±2 | 3.6 |
| 100 | 114.55 | ±0.35 | 113.55 | ±0.35 | 50 | ±2 | 4.5 |
| 125 | 140.70 | ±0.40 | 139.40 | ±0.40 | 65 | ±2 | 5.4 |
| 150 | 165.85 | ±0.45 | 164.25 | ±0.45 | 80 | ±2 | 6.3 |
| 200 | 217.30 | ±0.55 | 214.70 | ±0.55 | 115 | ±10 | 6.0 |
| 250 | 268.50 | ±0.65 | 265.50 | ±0.65 | 135 | ±10 | 7.2 |
| 300 | 319.50 | ±0.75 | 316.30 | ±0.75 | 150 | ±10 | 9.0 |
| 400 | 402.00 | ±0.85 | 397.50 | ±0.85 | 205 | ±10 | 9.5 |
