BUILDING

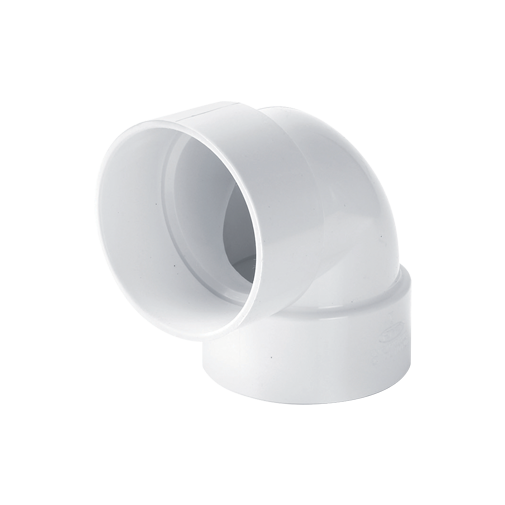

General fittings [ DTS fittings ]90 Elbow (DL)

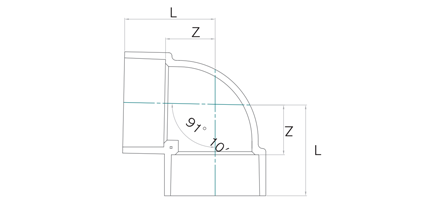

Specification
| DN | Z | L |
|---|---|---|
| 35 | 24 | 44 |
| 40 | 27 | 49 |
| 50 | 33 | 58 |
| 65 | 42 | 77 |
| 75 | 48 | 88 |
| 100 | 62 | 112 |
| 125 | 75 | 140 |
| 150 | 88 | 168 |
| ◆ 200 | 120 | 224 |
| ◆ 250 | 147 | 272 |
| ◆ 300 | 178 | 329 |
