BUILDING

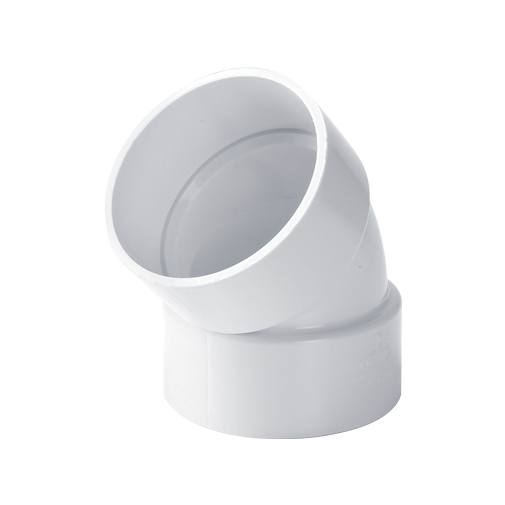

General fittings [ DTS fittings ]45 Elbow (45L)

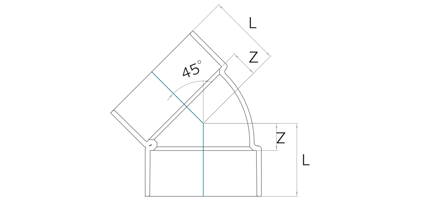

Specification
| DN | Z | L |
|---|---|---|
| 35 | 13 | 33 |
| 50 | 18 | 43 |
| 65 | 22 | 57 |
| 75 | 25 | 65 |
| 100 | 30 | 80 |
| 125 | 38 | 103 |
| 150 | 44 | 124 |
| ◆ 200 | 56 | 166 |
| ◆ 250 | 68 | 198 |
| ◆ 300 | 77 | 226 |
