BUILDING

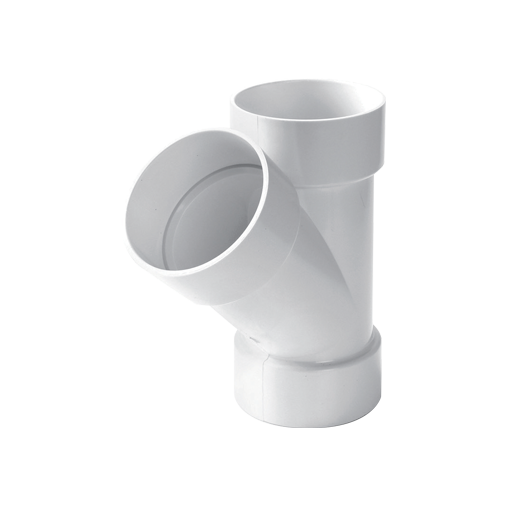

General fittings [ DTS fittings ]45Y

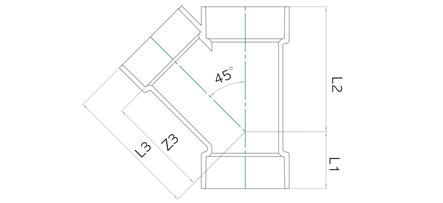

Specification
| DN | Z3 | L1 | L2 | L3 |
|---|---|---|---|---|
| 50 | 78 | 45 | 97 | 103 |
| 75 | 115 | 66 | 146 | 155 |
| 100 | 144 | 82 | 184 | 194 |
| 125 | 175 | 103 | 237 | 241 |
| 150 | 210 | 124 | 284 | 290 |
| 75X50 | 98 | 43 | 126 | 123 |
| 100X50 | 118 | 42 | 148 | 143 |
| 100X75 | 132 | 69 | 168 | 172 |
| 125X100 | 171 | 84 | 215 | 221 |
