BUILDING

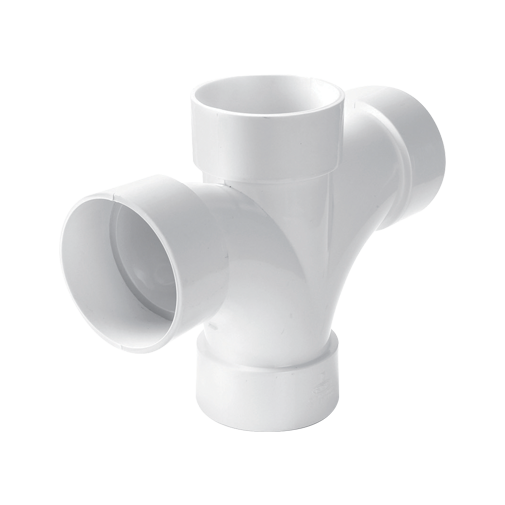

General fittings [ DTS fittings ]WLT

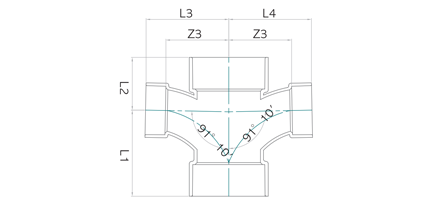

Specification
| DN | Z3 | L1 | Z2 | L3 | L4 |
|---|---|---|---|---|---|
| 75 | 100 | 140 | 78 | 140 | 140 |
| 100 | 128 | 178 | 95 | 178 | 178 |
| ◆ 75X50 | 79 | 106 | 69 | 104 | 104 |
| 100X75 | 110 | 150 | 90 | 150 | 150 |
BUILDING
General fittings [ DTS fittings ] | DN | Z3 | L1 | Z2 | L3 | L4 |
|---|---|---|---|---|---|
| 75 | 100 | 140 | 78 | 140 | 140 |
| 100 | 128 | 178 | 95 | 178 | 178 |
| ◆ 75X50 | 79 | 106 | 69 | 104 | 104 |
| 100X75 | 110 | 150 | 90 | 150 | 150 |
