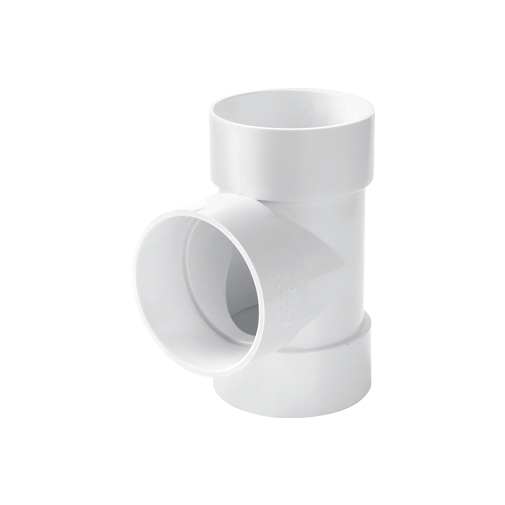

General fittings [ DTS fittings ]DT

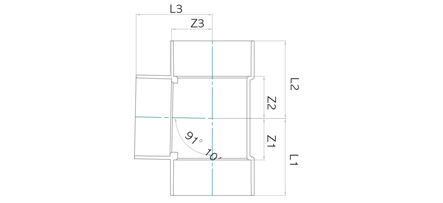

Specification
| DN | Z3 | L1 | L2 | L3 |
|---|---|---|---|---|
| 50 | 34 | 59 | 59 | 59 |
| 65 | 42 | 77 | 78 | 77 |
| 75 | 48 | 88 | 89 | 88 |
| 100 | 62 | 112 | 113 | 112 |
| 125 | 75 | 140 | 141 | 140 |
| 150 | 89 | 169 | 170 | 169 |
| ◆ 200 | 120 | 225 | 226 | 225 |
| ◆ 300 | 168 | 317 | 318 | 318 |
| 65X50 | 42 | 69 | 70 | 67 |
| 75X50 | 48 | 74 | 75 | 73 |
| 75X65 | 48 | 82 | 83 | 83 |
| 100X50 | 62 | 84 | 85 | 87 |
| 100X65 | 62 | 92 | 93 | 97 |
| 100X75 | 62 | 98 | 99 | 102 |
| 125X100 | 76 | 127 | 128 | 126 |
| 150X100 | 89 | 140 | 141 | 139 |
