BUILDING

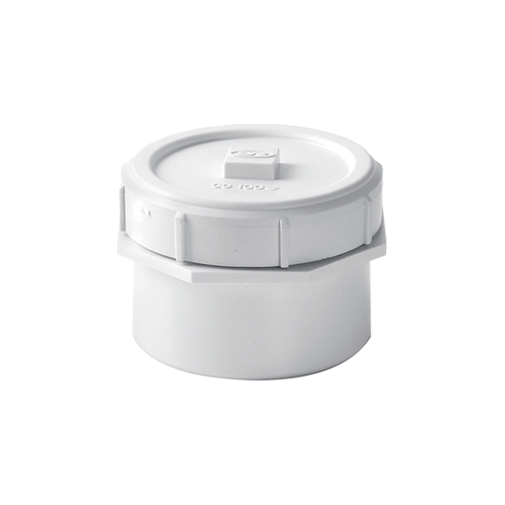

General fittings [ DTS fittings ]Maintenance cap

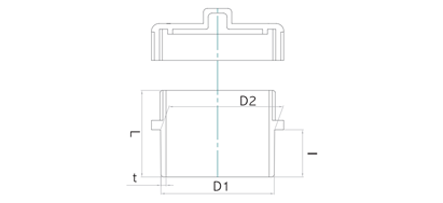

Specification
| DN | D1 | D2 | t | L | ℓ |
|---|---|---|---|---|---|
| ◆ 50 | 60 | 62 | 2.0 | 46 | 26 |
| ◆ 65 | 76 | 78 | 2.5 | 59 | 36 |
| ◆ 75 | 89 | 92 | 3.0 | 67 | 42 |
| ◆ 100 | 114 | 115.5 | 3.5 | 80 | 52 |
| ◆ 125 | 140 | 143 | 4.5 | 98 | 67 |
| ◆ 150 | 165 | 168 | 5.5 | 116 | 82 |
| ◆ 200 | 216.3 | 220 | 7.5 | 171 | 105 |
