BUILDING

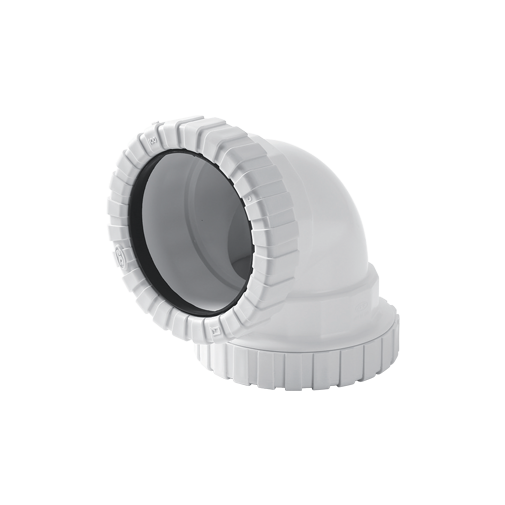

General fittings [ URF fittings ]90 Elbow – Short (DL)
Specification

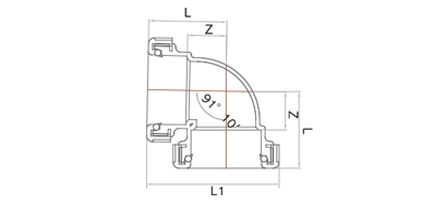

| DN | Z | L | L1 |
|---|---|---|---|
| 35 | 28 | 54 | 88 |
| 40 | 28 | 60 | 98 |
| 50 | 34 | 68 | 114 |
| 75 | 46 | 94 | 157 |
| 100 | 58 | 118 | 196 |
| 125 | 73 | 139 | 231 |
BUILDING
General fittings [ URF fittings ] | DN | Z | L | L1 |
|---|---|---|---|
| 35 | 28 | 54 | 88 |
| 40 | 28 | 60 | 98 |
| 50 | 34 | 68 | 114 |
| 75 | 46 | 94 | 157 |
| 100 | 58 | 118 | 196 |
| 125 | 73 | 139 | 231 |
