BUILDING

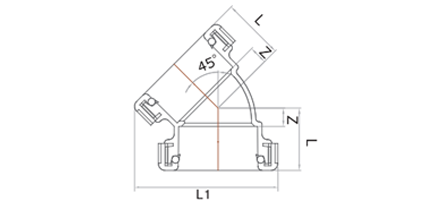

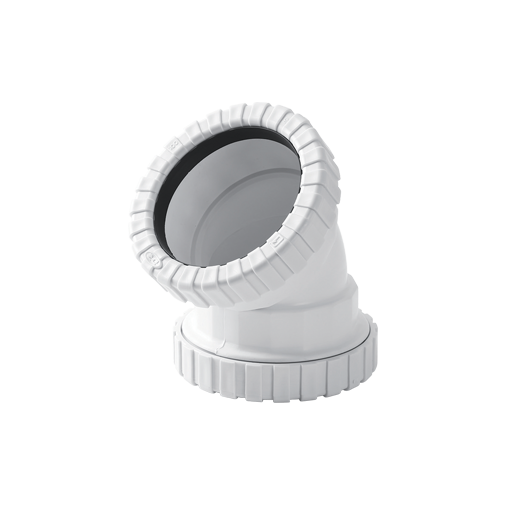

General fittings [ URF fittings ]45 Elbow (45L)
Specification
| DN | Z | L | L1 |
|---|---|---|---|
| 35 | 11 | 37 | 82 |
| 40 | 12 | 44 | 94 |
| 50 | 14 | 48 | 109 |
| 75 | 22 | 70 | 155 |
| 100 | 26 | 86 | 189 |
| 125 | 46 | 112 | 230 |
