BUILDING

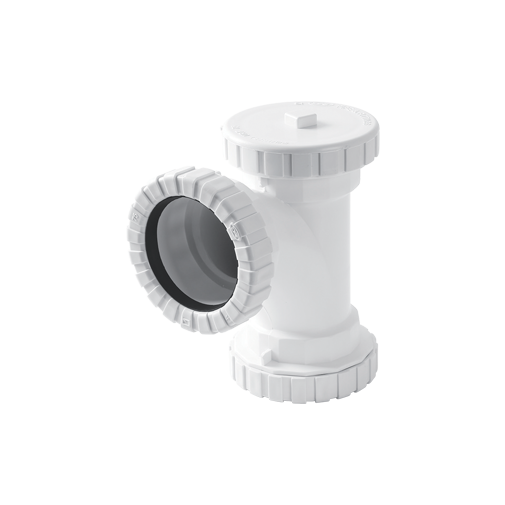

General fittings [ URF fittings ]CLT-I type

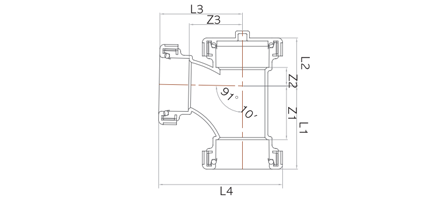

Specification
| DN | Z1 | Z2 | Z3 | L1 | L2 | L3 | L4 |
|---|---|---|---|---|---|---|---|
| 40 | 47 | 21 | 49 | 78 | 53 | 81 | 119 |
| 50X35 | 38 | 18 | 50 | 71 | 51 | 76 | 122 |
| 50X40 | 50 | 18 | 56 | 83 | 52 | 87 | 132 |
| 50 | 62 | 21 | 62 | 95 | 55 | 95 | 141 |
| 75X40 | 63 | 23 | 79 | 111 | 71 | 110 | 173 |
| 75X50 | 66 | 26 | 79 | 114 | 74 | 113 | 176 |
| 75 | 102 | 40 | 96 | 150 | 88 | 144 | 208 |
| 100X50 | 62 | 27 | 88 | 121 | 87 | 122 | 199 |
| 100X75 | 98 | 33 | 108 | 158 | 93 | 156 | 233 |
| 100 | 123 | 38 | 123 | 183 | 98 | 183 | 261 |
| 125X100 | 121 | 42 | 140 | 187 | 108 | 200 | 291 |
| 125 | 135 | 58 | 135 | 201 | 124 | 201 | 293 |
