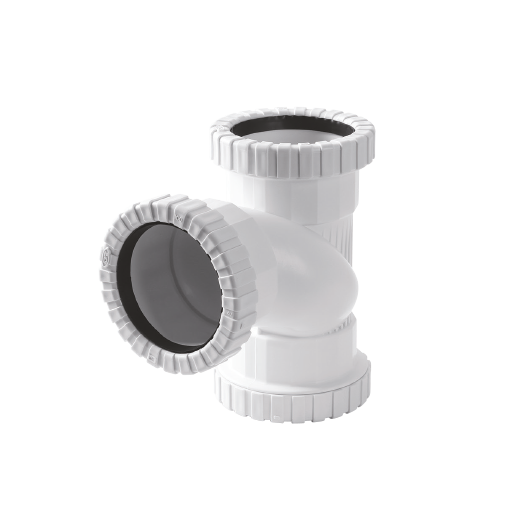

General fittings [ Sextia ]S-LT

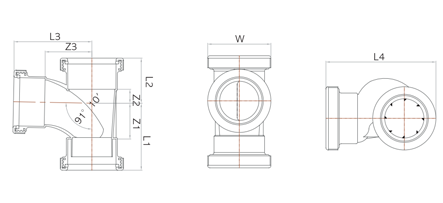

Specification
| DN | Z1 | Z2 | Z3 | L1 | L2 | L3 | L4 | W |
|---|---|---|---|---|---|---|---|---|
| 100X100 | 85.0 | 33.0 | 112.0 | 159.0 | 107.0 | 186.0 | 262.5 | 153.0 |
| 100X75 | 85.0 | 32.0 | 99.0 | 153.0 | 100.0 | 159.0 | 226.0 | 153.0 |
| 100X50 | 85.0 | 33.0 | 108.0 | 159.0 | 107.0 | 145.0 | 221.5 | 153.0 |
| 75X50 | 76.0 | 32.0 | 76.0 | 159.0 | 95.0 | 113.0 | 175.5 | 125.0 |
