BUILDING

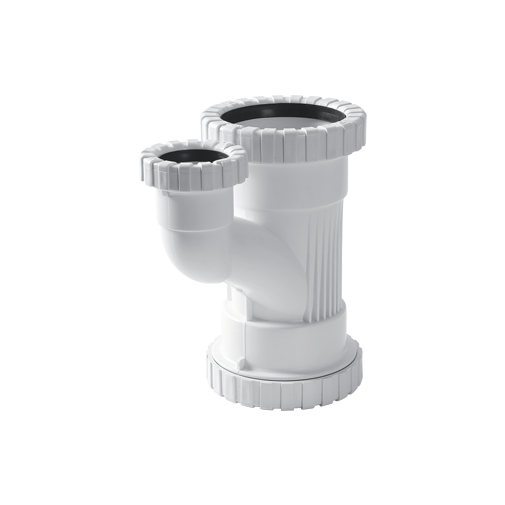

General fittings [ Sextia ]S-NCT
Specification

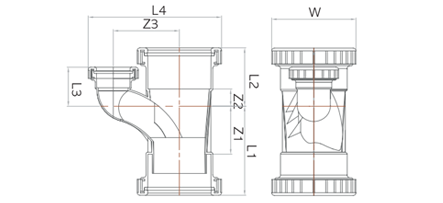

DN | Z1 | Z2 | Z3 | L1 | L2 | L3 | L4 | W |
---|---|---|---|---|---|---|---|---|
100X50X50 | 88 | 30 | 125 | 162.5 | 104.5 | 89 | 247 | 153 |
100X75 | 62 | 210 | 344 | 300 | 86.5 | 65.5 | 35 | 149 |
100X100 | 62 | 210 | 359 | 300 | 86.5 | 66.5 | 35 | 149 |
